Walnut - Outdoor Batten End Cap

Walnut - Outdoor Batten End Cap

Walnut - Outdoor Batten End Cap

$2.70 Extra 10% OFF applied. Limited time only!
$3.00 $2.70 Sale Sold out Extra 10% OFF applied. Limited time only!
Tax included. Shipping calculated at checkout.

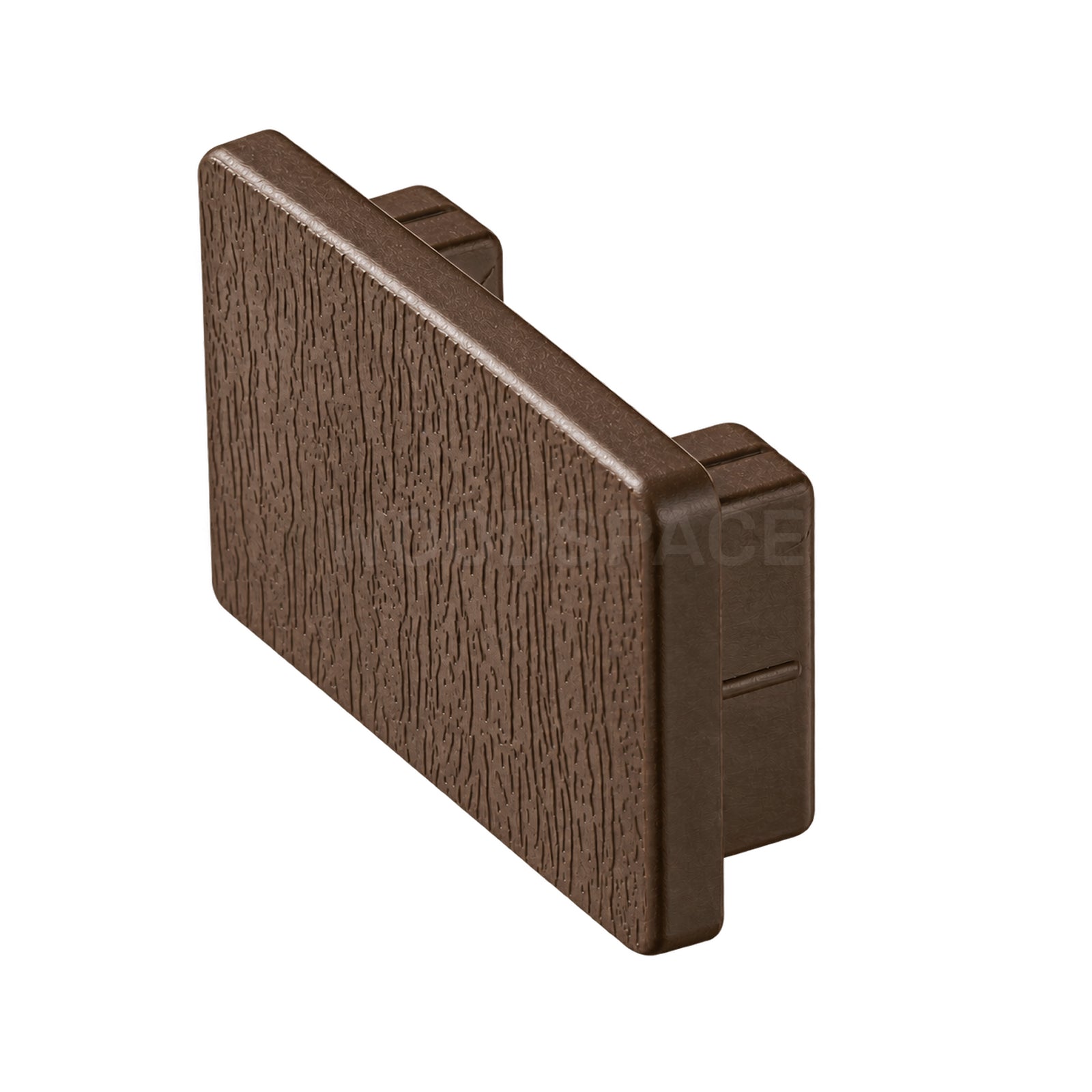

Woodspace Outdoor Batten Cap in Walnut seals the top and bottom of hollow WPC battens with a clean, colour-matched finish. Moulded from durable PVC to fit the 60 x 40mm Outdoor Batten profile.

Apply a small amount of Fast Grab Wall Panel Glue and push the cap into the open end of the batten. It's the difference between a screen that looks installed and one that looks finished.

  • Moulded PVC construction, built for outdoor use
  • Seals the top and bottom of hollow Outdoor Battens
  • 60 x 40 x 15mm, fits the Woodspace Outdoor Batten profile
  • Colour-matched to the Walnut batten finish
  • Push-fit with Fast Grab Wall Panel Glue
  • Low-maintenance, simply clean as needed
  • Sold individually



Use on exposed batten ends across screens, facades, pergolas and planter boxes. Part of the Woodspace Outdoor Batten range for a consistent, coordinated exterior finish.

Building the screen? Shop Outdoor Battens →

Size: 60 x 40 x 15 mm (Single piece)
Covers 0m²

30 Days Return

Express Shipping

Click & Collect (Sydney Only)

How to Install

Outdoor SlatWall™ Battens are a non-structural decorative system, so they should never be fixed directly to a solid wall or used as safety balustrading. Instead, fix them to a frame or a subframe (timber batten, metal rail or aluminium) anchored to the structure first. This also leaves a rear gap for ventilation and drainage. Set support rails at a maximum of 600mm centres. Pre-drill each batten with a 5mm bit, then drive one stainless steel screw per batten at every rail, perpendicular to the face, until the head sits flush. Don’t overtighten the screws, as this can distort the hollow profile. Use 316 stainless steel 12g x 65mm screws for timber frames, or 12g x 45mm self-tapping screws for metal. Face-fixed screw heads can be hidden with colour-matched exterior paint, or you can rear fix for a clean front. Battens expand and contract, so leave 1mm per lineal metre at each end and double that at butt joints. Keep clear of soil, paving, decking and overhead surfaces. Finish by gluing the caps on last with MS fast grab adhesive. Refer to our full installation guide for more details.

Brochures and Downloads

Panel Calculator

Quantity Required: 0
Total Coverage Area (m²): 0 sqm

Disclaimer

This tool gives you a good estimate, but it’s not always exact. If your wall height is taller than one panel, it may suggest an extra full panel per row, even if only a small piece is needed. Remember, panels can often be cut to fit multiple rows. Mixing panel sizes can also help reduce waste and cost.

Need Help? Chat with us now

Trusted by

Outdoors, Year After Year

Made from high-performance WPC with a protective capping layer, Outdoor SlatWall™ Battens offer structural reliability and long-term outdoor performance. Resistant to moisture, UV fading, insects and rot, they’re made to withstand exterior conditions across residential and commercial spaces.

More Living, Less Maintenance

Bring the natural warmth of timber outdoors, without the ongoing upkeep. The durable composite construction requires no oiling, sanding or painting, offering a low-maintenance way to introduce texture, dimension and architectural detail to exterior spaces.

Form Meets Performance

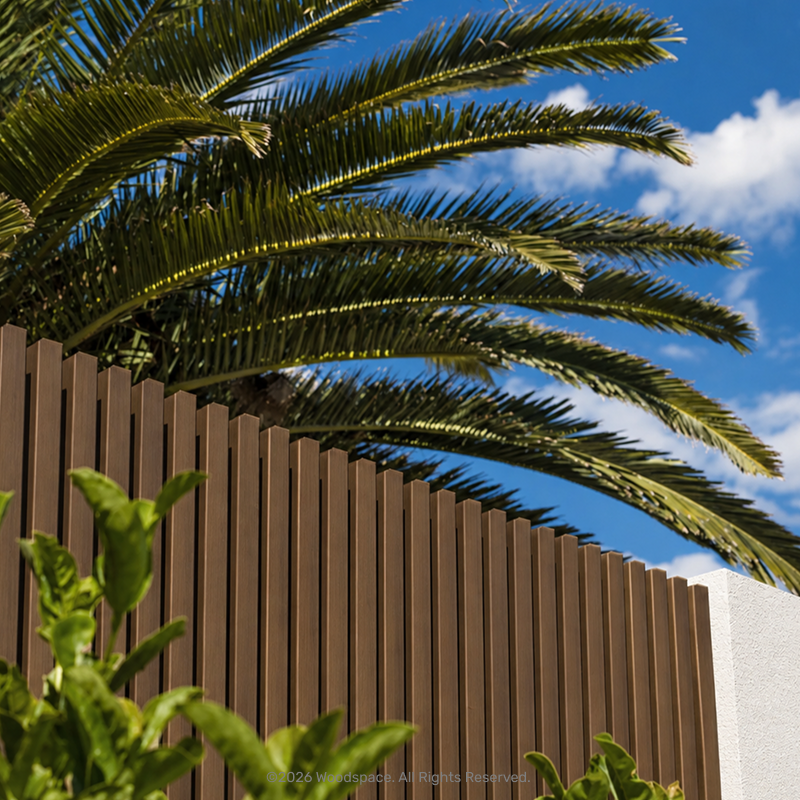

Combining the strength and consistency of composite construction with the natural warmth of timber, Outdoor SlatWall™ Battens are a considered solution for exterior projects. Use them across façades, privacy screens, boundary features, entryways, alfresco areas and architectural detailing.

One Batten, Endless Possibilities

Lightweight construction allows for easy handling and installation across a range of applications. Battens can be installed vertically or horizontally, with adjustable spacing to suit the project, whether creating screening, architectural detailing or a defined outdoor feature.
